L anchor bolt (l bolt)
Product Sheet TABLE

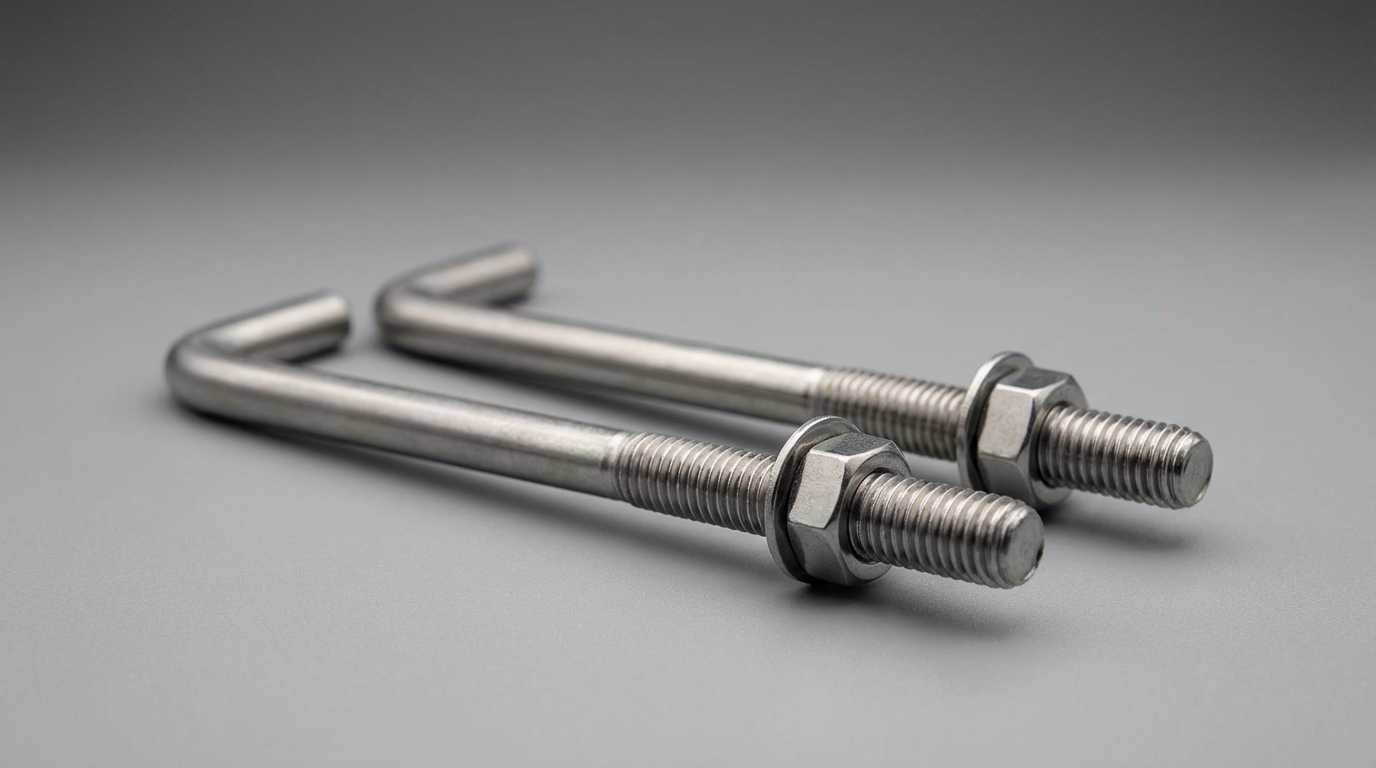

l anchor bolt (l shaped bolt)
Various kind of l shaped anchor bolts (l bolts) for construction projects for example concrete, foundation ,nuts and screw ,trading towers, residential towers, industrial equipment for example: l shaped machine threaded anchor, l shaped threaded bolts and structures based on ASTM A307 , ASTM F1554 up to size 100 mm dia and 6 m length.
Also The L-Bolt anchor bolts are used to attach sill plates to concrete or masonry foundations, provide anchorage for light weight post bases and for general anchorage to concrete.
l anchor bolt sizes : (3/16”-4”) – (M12-M100)
l anchor bolt grade : 4.8 – 5.8 – 6.8 – 8.8 – 10.9 – 12.9
Kind of coating : galvanized steel , …
Product Name |
|---|
MATERIAL l bolts |
STANDARD |
GRADE |
Type of Thread |
Threaded Section |
l anchor bolt sizes |
Diameter Tolerance |
Length |
Bend Length |
Finish |
Added Services |
PACKAGING |
Term |
l anchor bolt (anchor bolt l shape) |
|---|
Carbon Steel |
DIN-ASTM-ANSI-DIN-BSW-JIS-AISI-GB |
4.8 – 5.8 – 6.8 – 8.8 – 10.9 – 12.9 |
Millimeter – Inch , …. |
All length threaded , One side threaded , Two side threaded |
(3/16”-4”) – (M12-M100) |
± 0.05 mm |
140 mm – 3000 mm |
up to customer request |
Plain, ZincPlated(Clear/Blue/Yellow/Black), black oxide, H.D.G, DAC,GOEMET |
Bending shape (L shape , U shape , J Shape , … ) – Forging , … |
pallet ,
Based on Customer’s request |
EXWORK – FOB – C&F – CIP ,… |
Buy l bolts
Our company has high production capacity and expertise in manufacturing L bolts. We offer a wide range of L bolts in various sizes and specifications to meet your requirements. All of our L bolts are produced with precision and strict adherence to technical standards, ensuring superior quality throughout the production process. We provide nationwide delivery at competitive prices, along with fast and reliable shipping solutions to guarantee customer satisfaction. If you’re looking for a trusted supplier of L bolts, we are ready to fulfill your needs with top-quality products and exceptional service.
Product details
The process for creating a anchor bolt l shape, the manufacturing process typically involves the following steps: 1- cutting the steel rod 2- Bending the end 3- Threading the other end 4-Heat treating (optional) 5- Galvanizing or coating 6- Quality control.
An anchor bolt is a type of fastener that is used to secure objects or structures to a concrete or masonry surface. The bolt is typically made of steel and is embedded into the concrete or masonry during construction.
The most common type of anchor bolt is the L shaped anchor bolt, which has a bent end that
resembles the letter “L”. The bent end is embedded into the concrete or masonry, while the other end
protrudes from the surface.
Anchor bolts are commonly used in the construction of buildings, bridges, and other structures to provide a secure connection between the structure and the foundation. They are also used in the
installation of heavy machinery and equipment, as well as in the installation of fences, guardrails, and other types of barriers.
